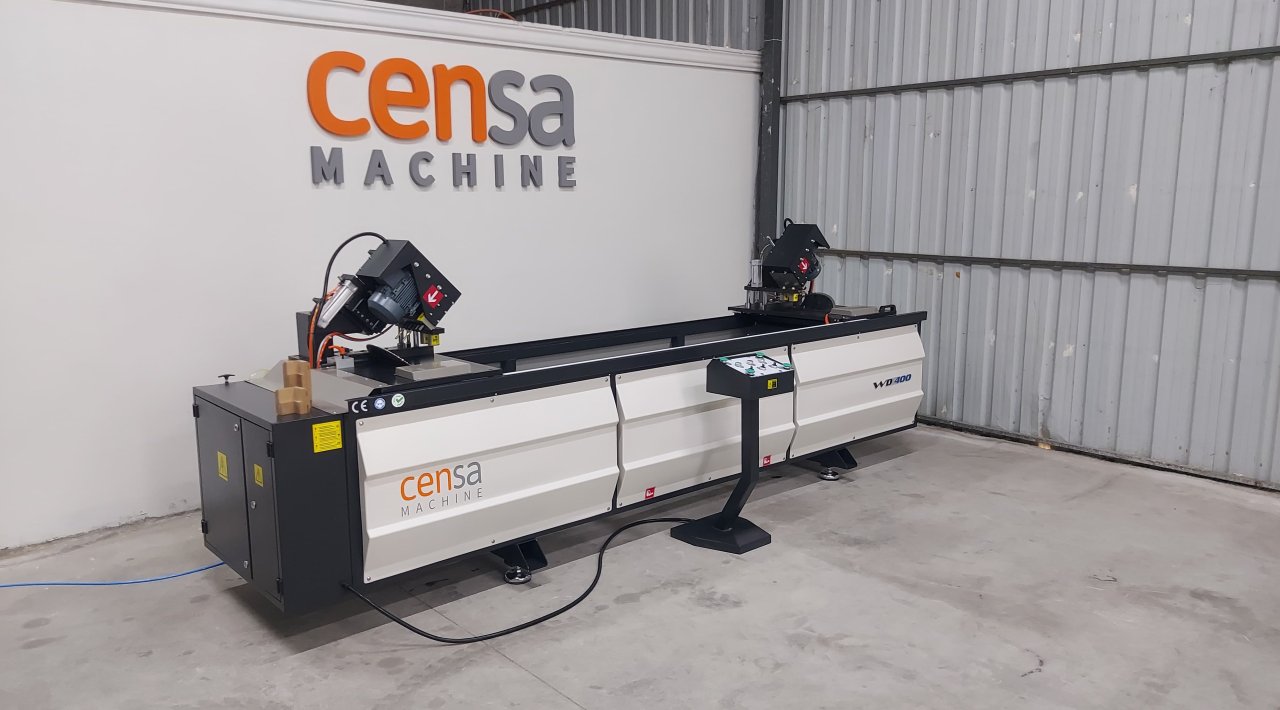

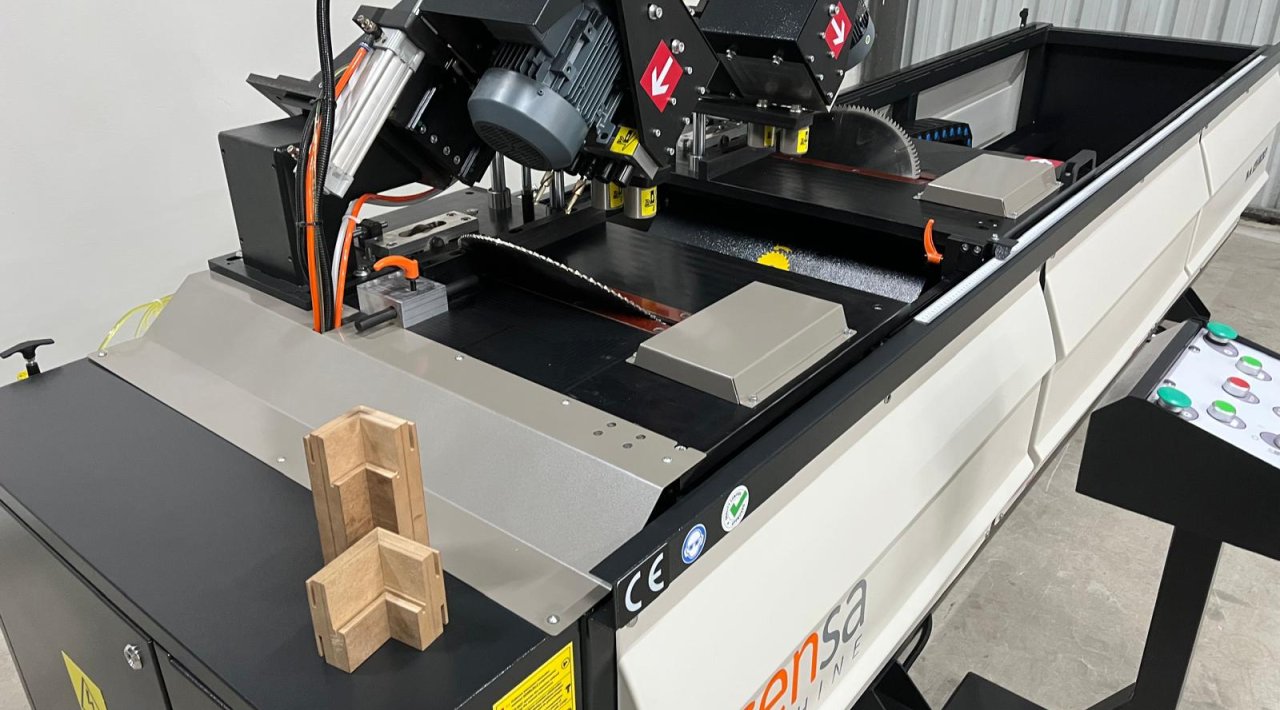

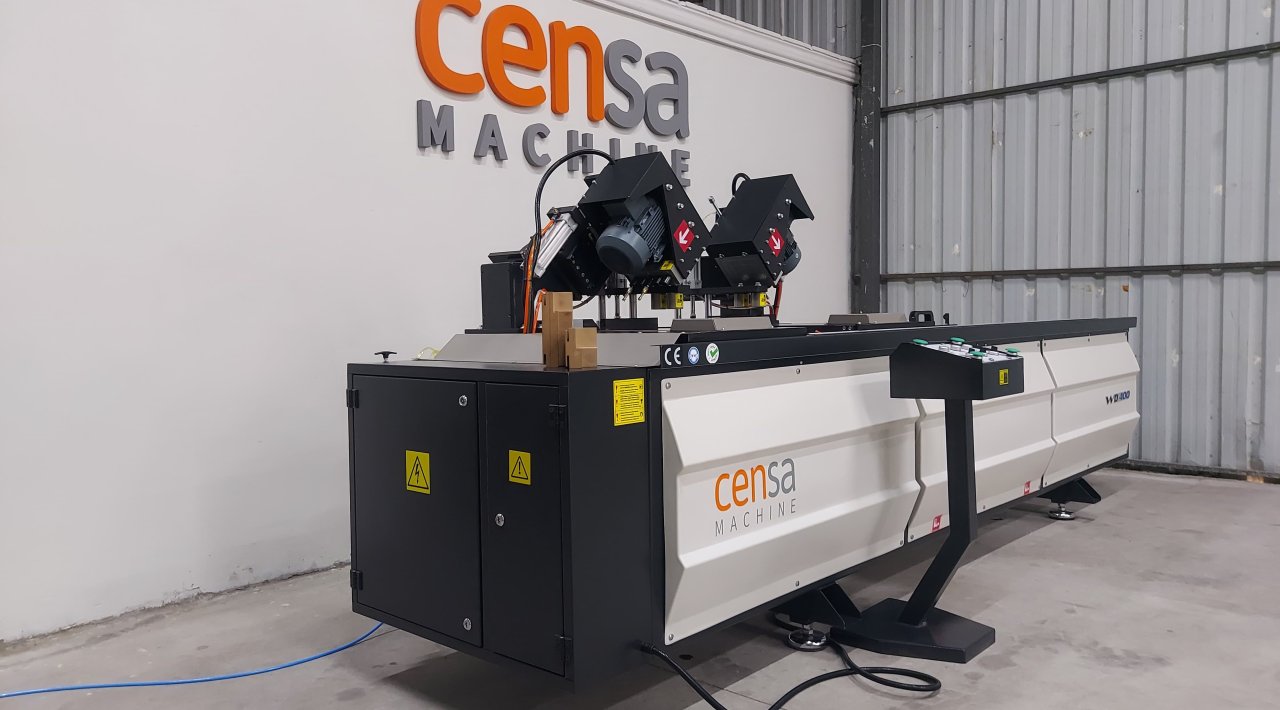

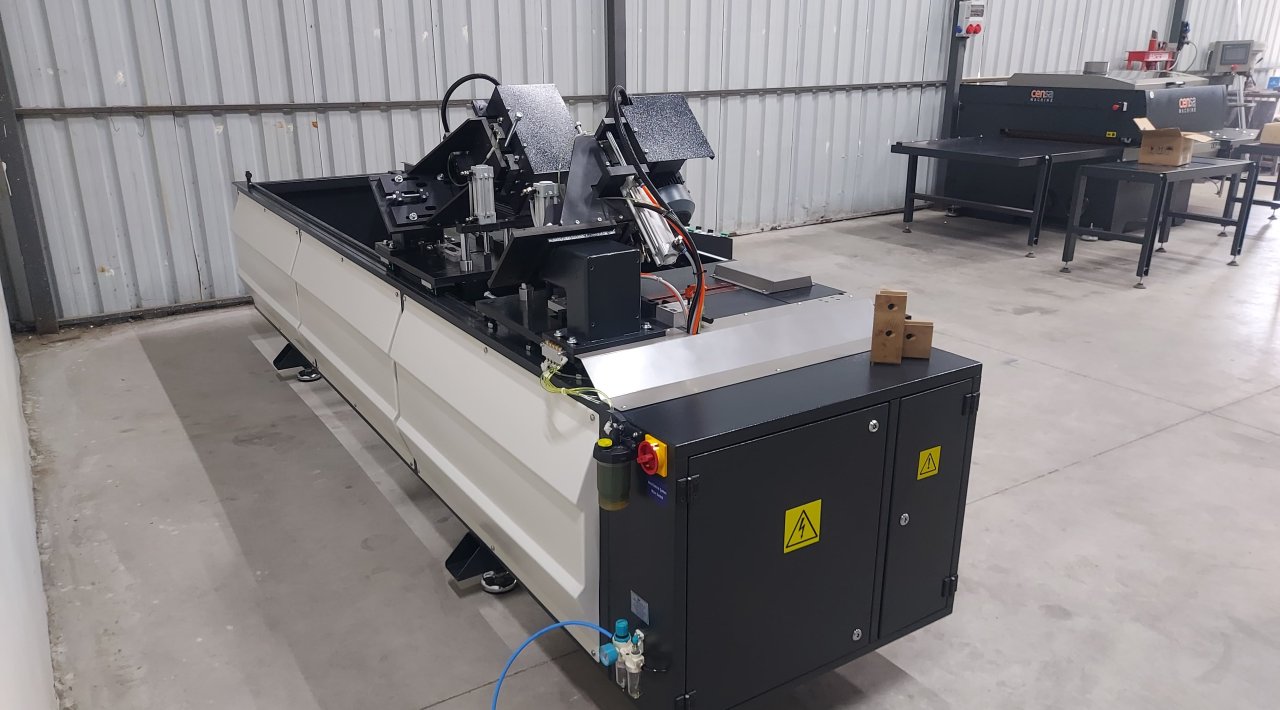

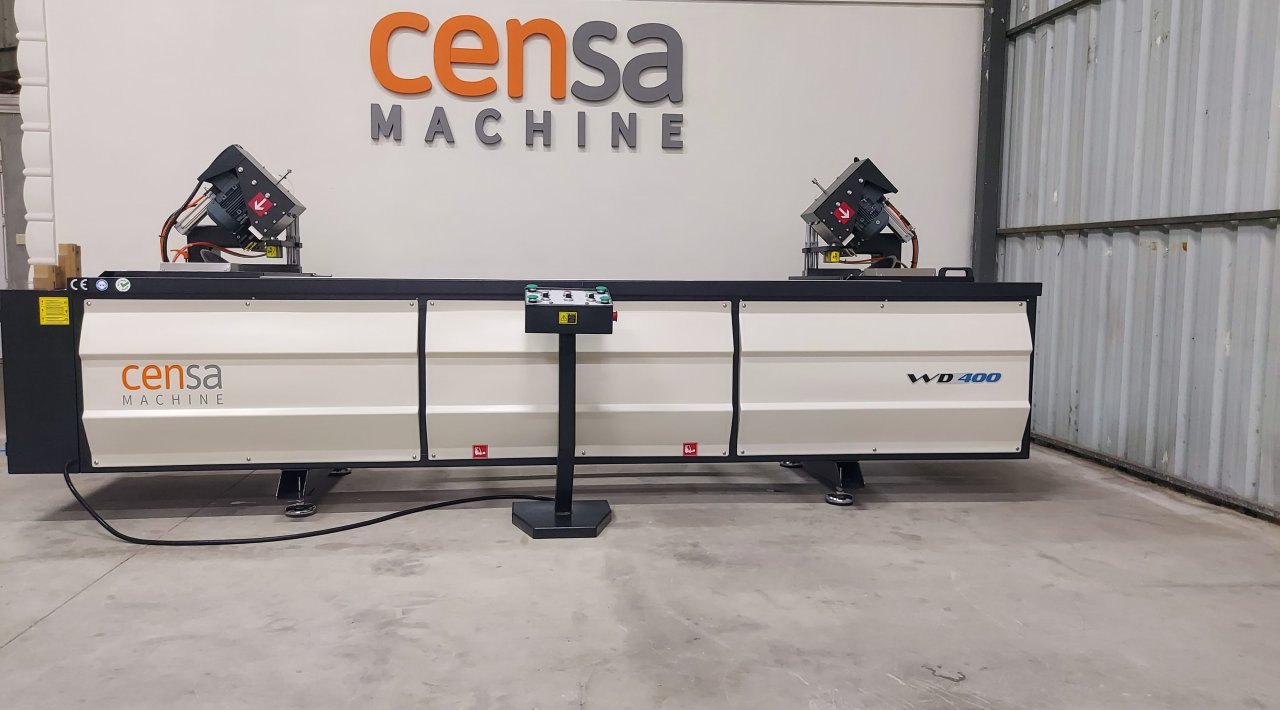

WD 400 Double-Head Door Frame 45°-90° Cutting and Dowel Hole Drilling Machine
The WD 400 is a specialized cutting and hole drilling machine equipped with a double-head design, offering high precision and speed for door frame production. Thanks to its advanced design, it is capable of making both 45° and 90° cuts, while also drilling dowel (tenon) holes precisely and simultaneously, significantly accelerating the production process.
Key Features:

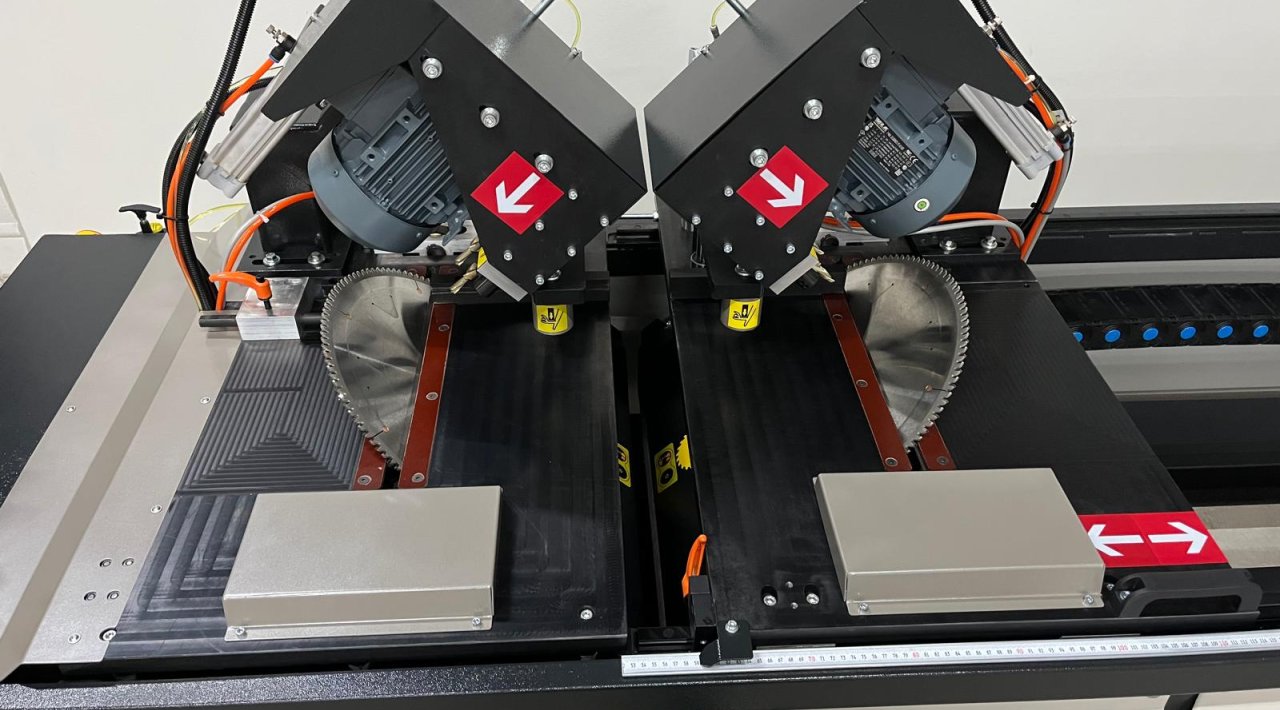

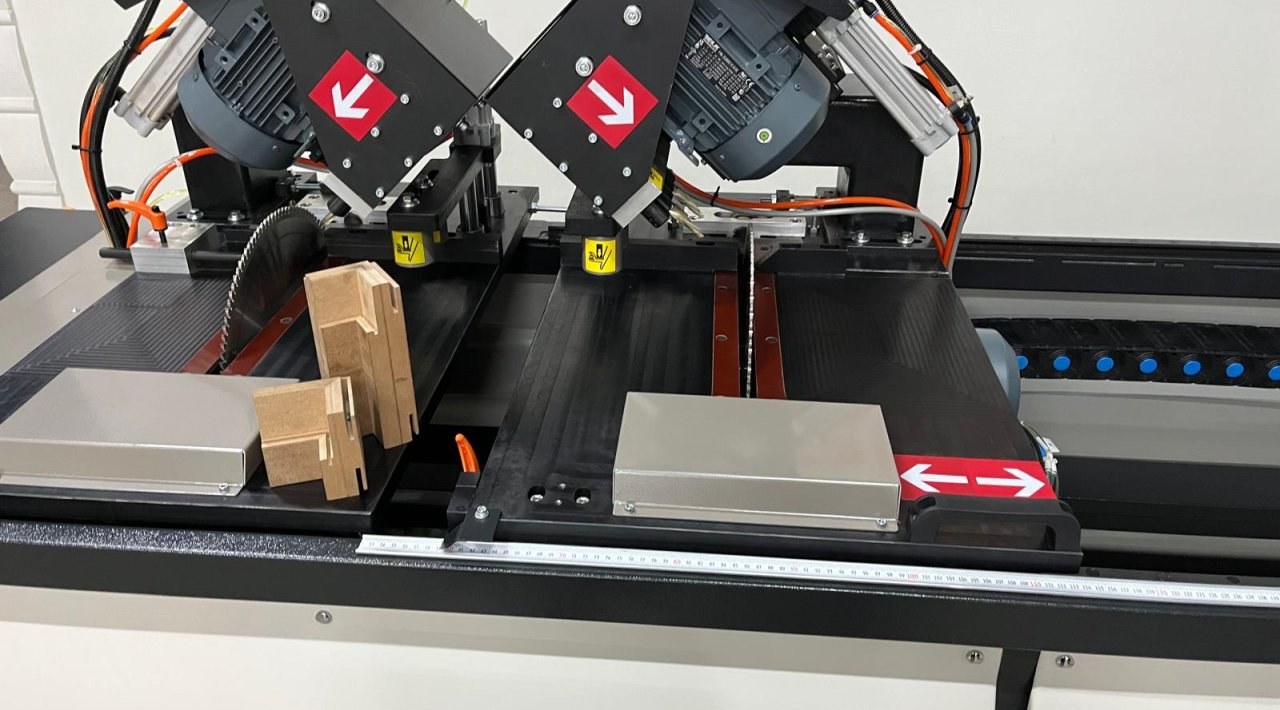

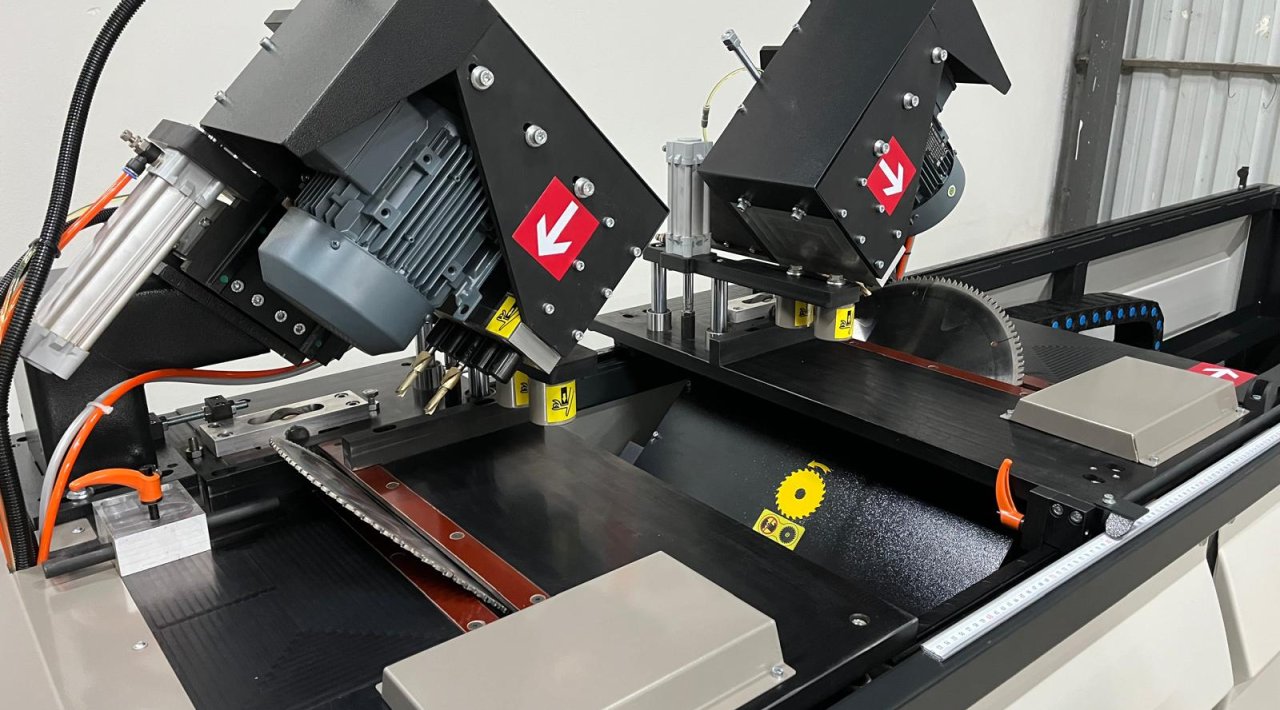

• Double-Head Design: Independent cutting and hole-drilling units at both ends allow for simultaneous operation.

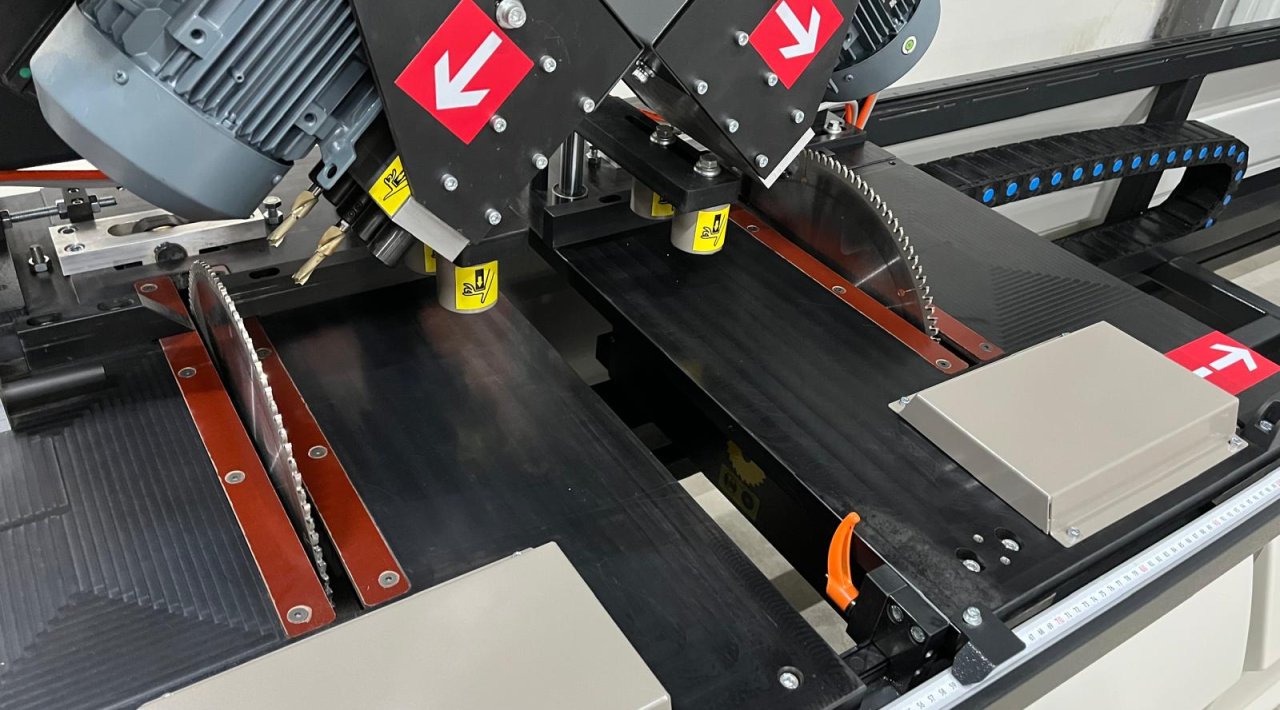

• 45° and 90° Precision Cutting: The ability to cut at different angles provides flexibility in door frame production.

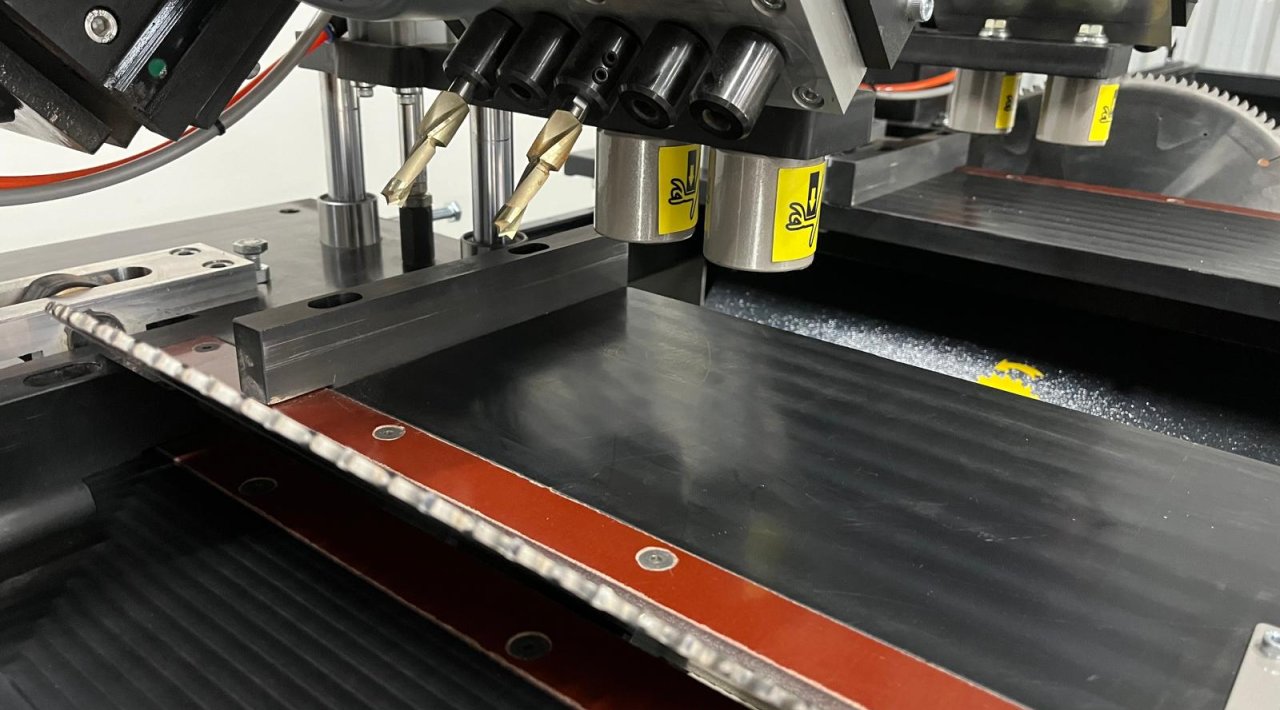

• Dowel Hole Drilling Unit: Automatically drills standard, assembly-ready holes in accordance with standards.
• Durable and Ergonomic Body: A robust design suitable for industrial use ensures long-lasting performance.

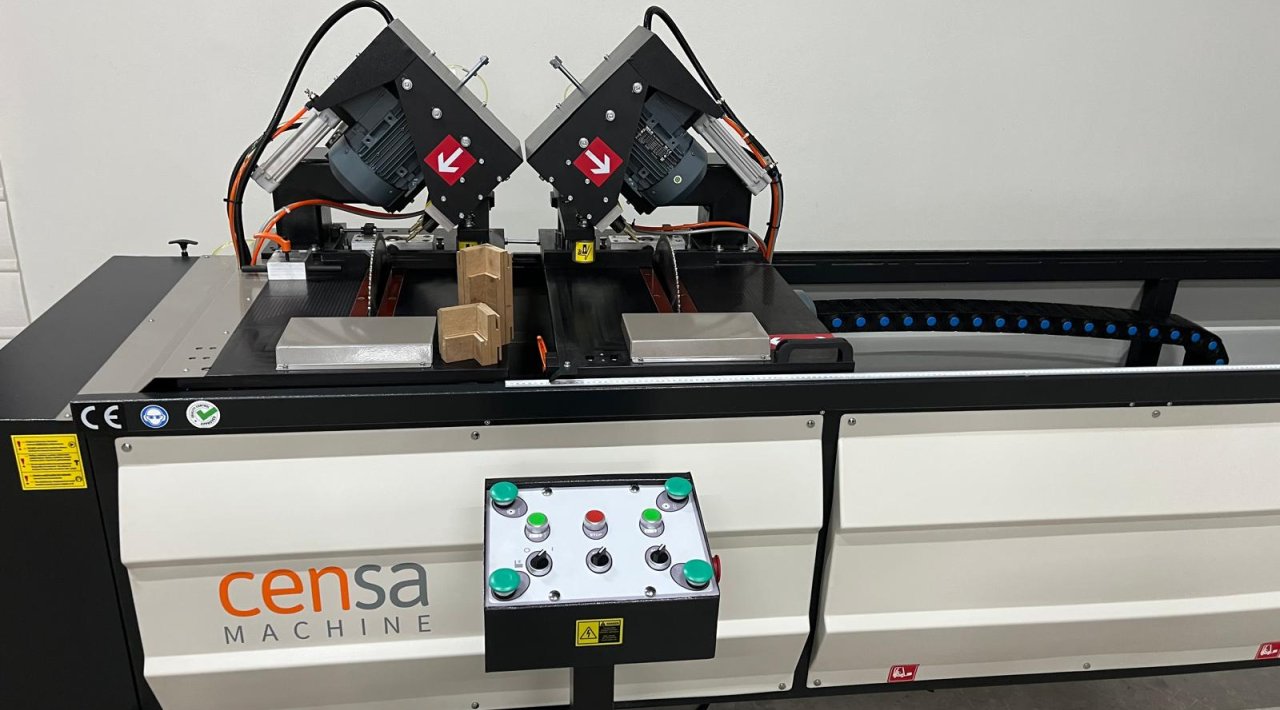

• Control Panel: User-friendly control panel for easy operation.
• Body Structure: A strong and durable frame design, ideal for mass production.
The WD 400 is specifically designed for door and joinery workshops engaged in mass production, offering an ideal solution for businesses looking to enhance production quality and save time.
Specifications
| Feature | Value |
|---|---|
| Maximum Cutting Width | 280 mm |
| Minimum Length Cutting | 590 mm |
| Maximum Length Cutting | 2800 mm |
| Blade Diameter | 400 mm |
| Number of Cutting Units | 2 |
| Cutting Motor | 1.5 kW – 3000 RPM |
| Number of Drilling Units | 2 |
| Drilling Motor | 1.1 kW – 3000 RPM |
| Total Power Consumption | 5.2 kW |
| Operating Voltage | 380V / 50 Hz |
| Required Air Pressure | 6 Bar |
| Machine Length | 4000 mm |
| Machine Width | 1100 mm |
| Machine Height | 1400 mm |
