WD 2800 Lift-Assisted MDF Panel Cutting and Sizing Machine (Loading and Unloading)

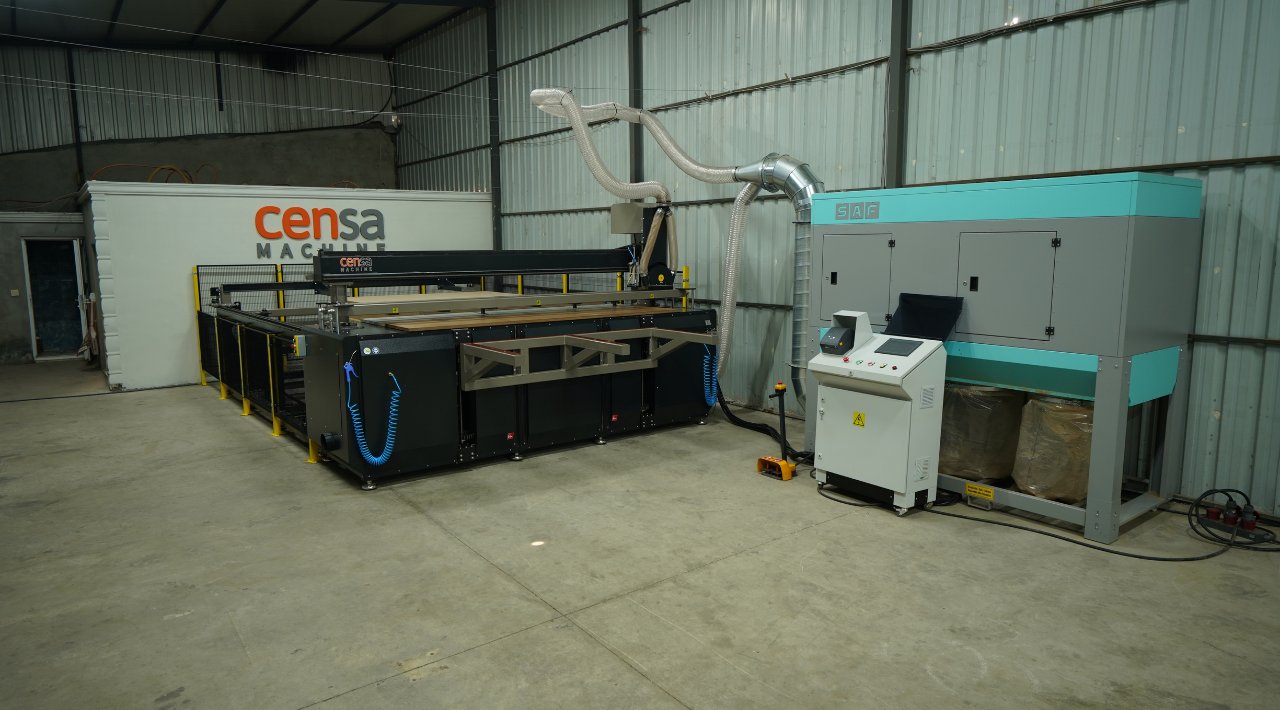

Produced with the assurance of Censa Makina, the WD 2800 Lift-Assisted MDF Panel Cutting and Sizing Machine is an advanced production system designed to cut raw MDF panels to the desired dimensions with high speed and precision.

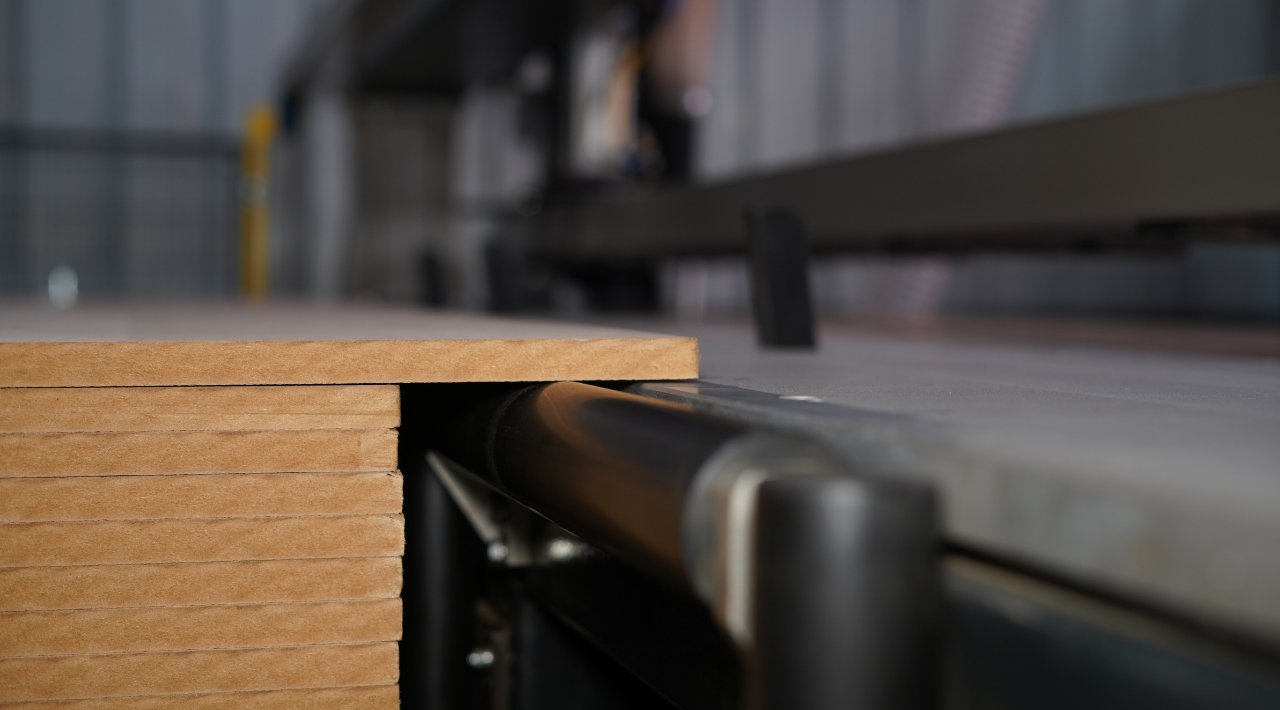

MDF panels, which are placed on the loading lift with the help of a forklift, are transported to the cutting unit by automatic pushers. With the high-performance cutting mechanism, the panels are sliced with minimal waste and maximum efficiency. After the cutting process, the parts are transferred to the unloading lift and prepared for transportation with the help of a forklift.
This system ensures labor savings, high production capacity, and dimensional accuracy, allowing you to manage your wood panel processing processes in the most efficient way.
WD 2800 Lift-Assisted MDF Panel Cutting and Sizing Machine (Loading and Unloading)

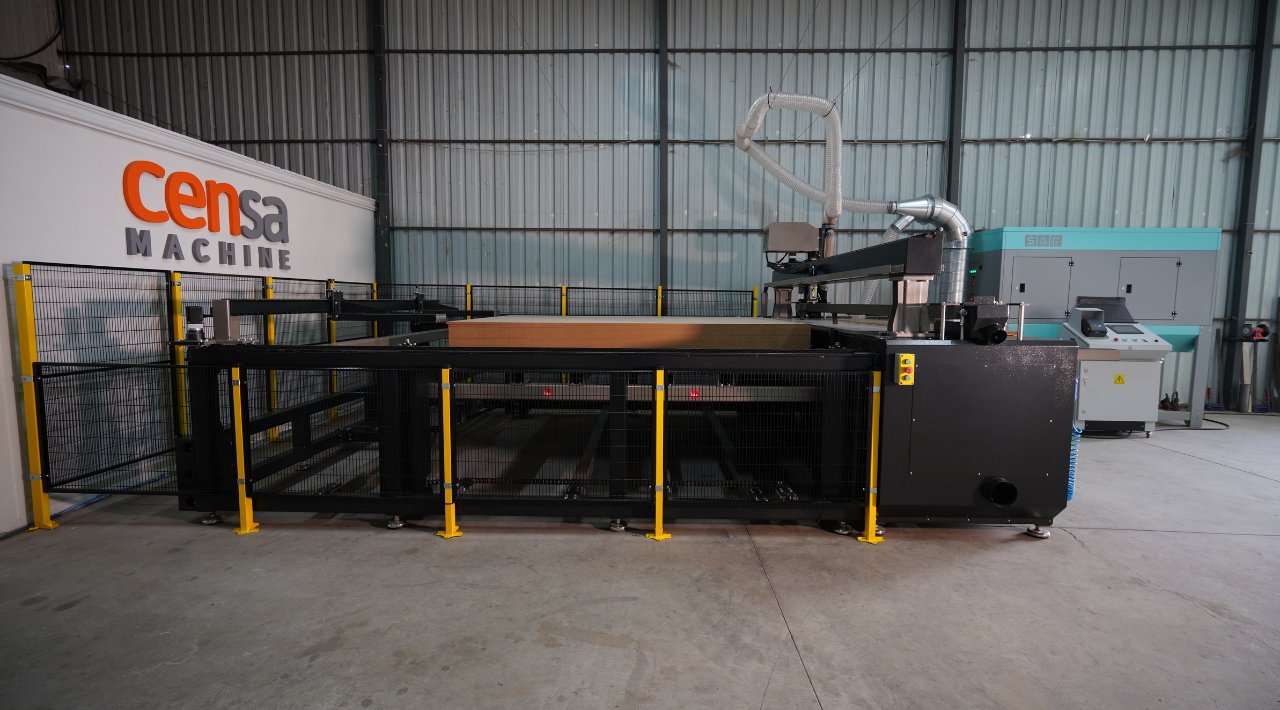

The WD 2800 is a professional panel sizing and MDF cutting machine equipped with high precision, powerful hardware, and full automation features. Integrated with loading and unloading lifts, this system maximizes speed and efficiency on your production line.

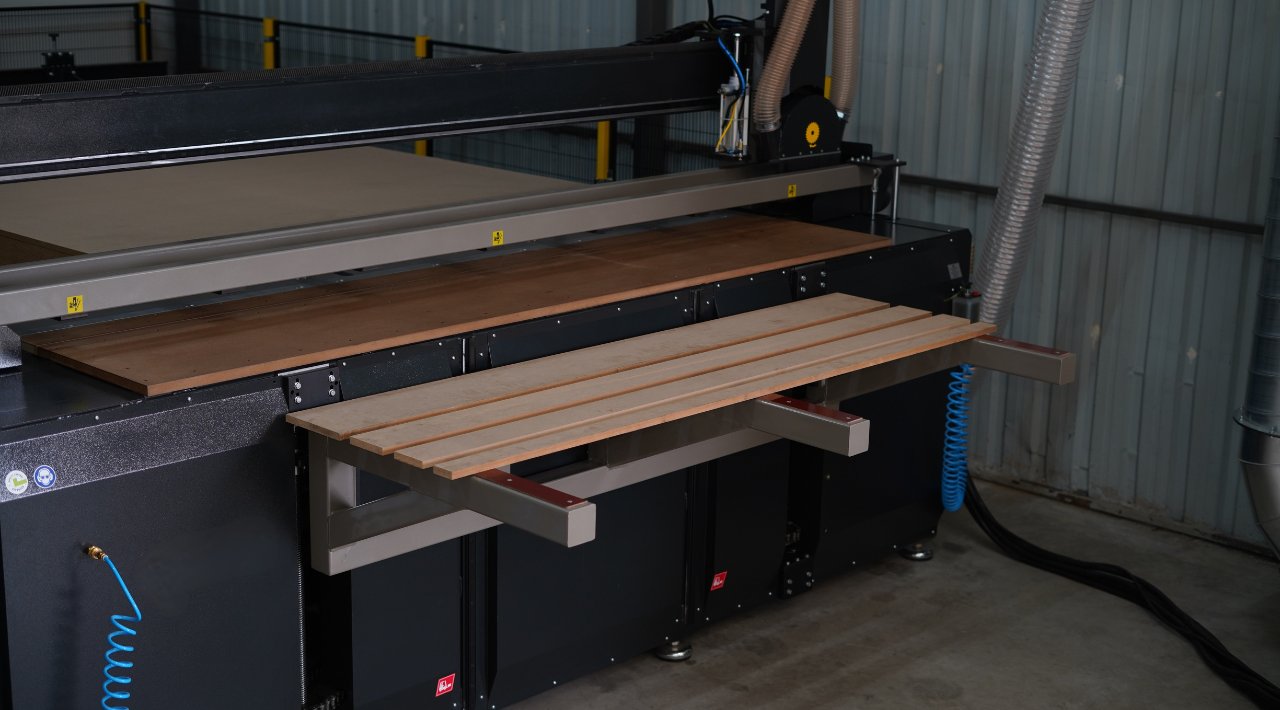

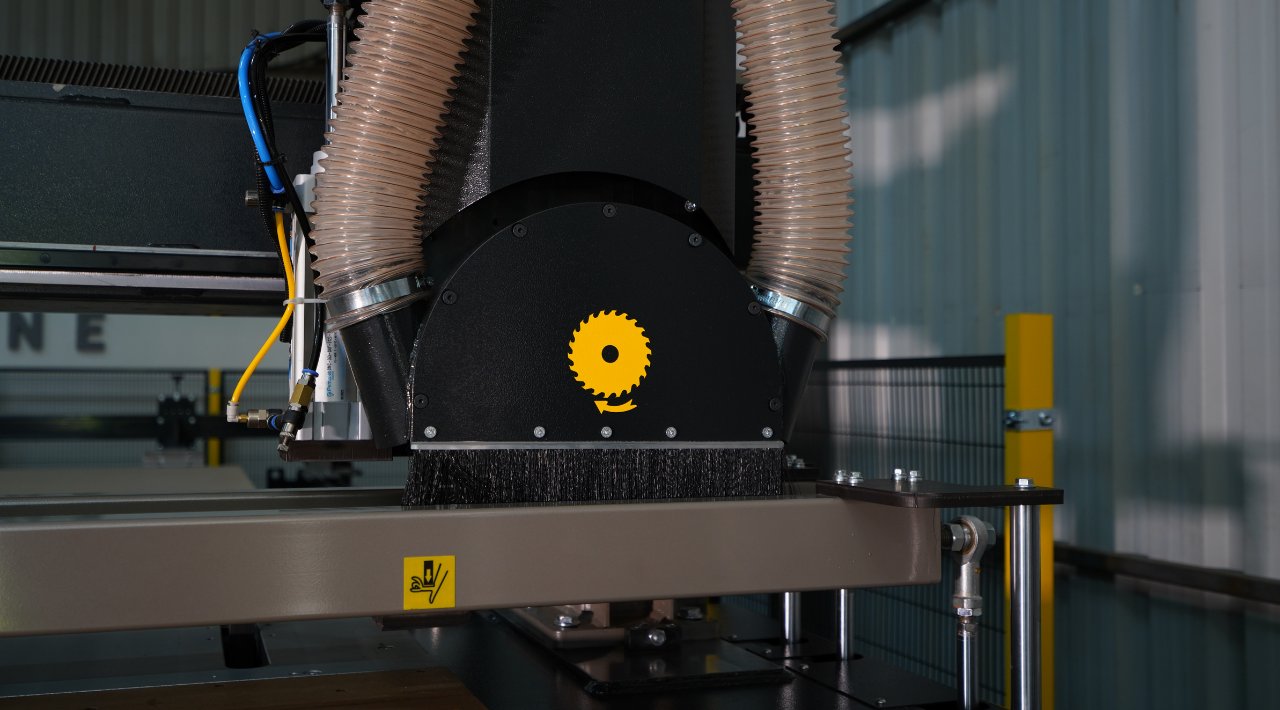

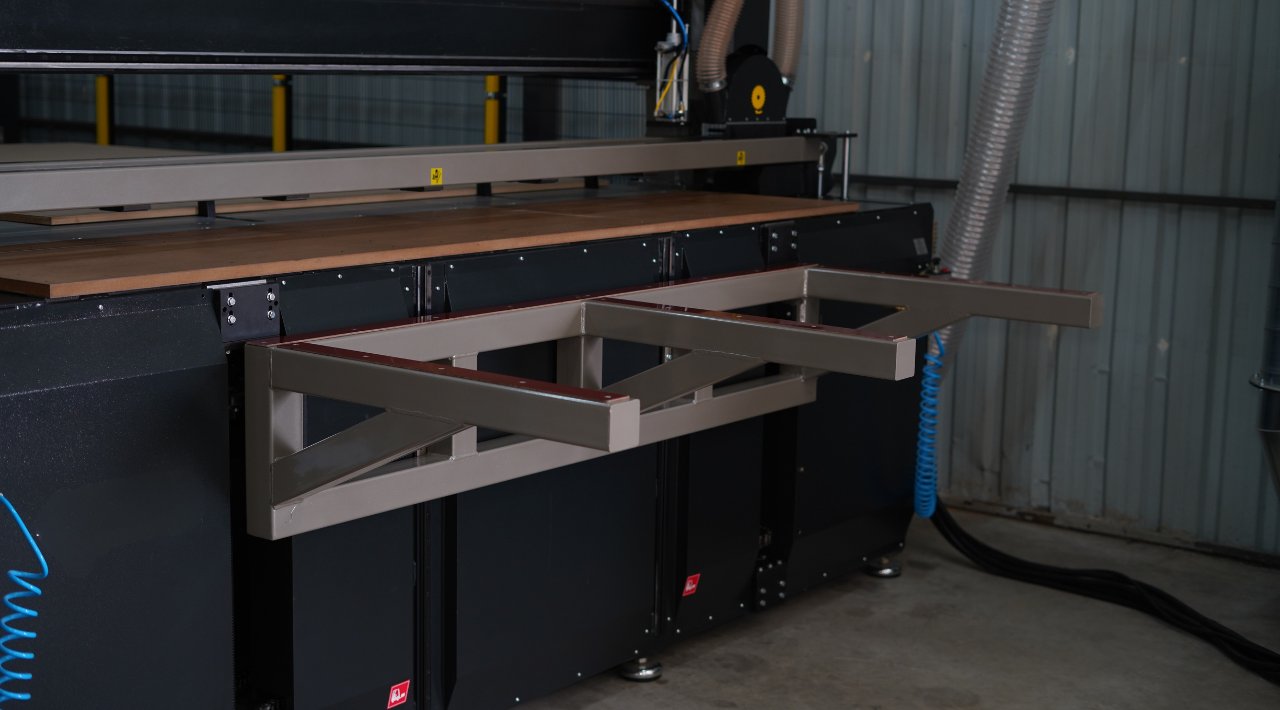

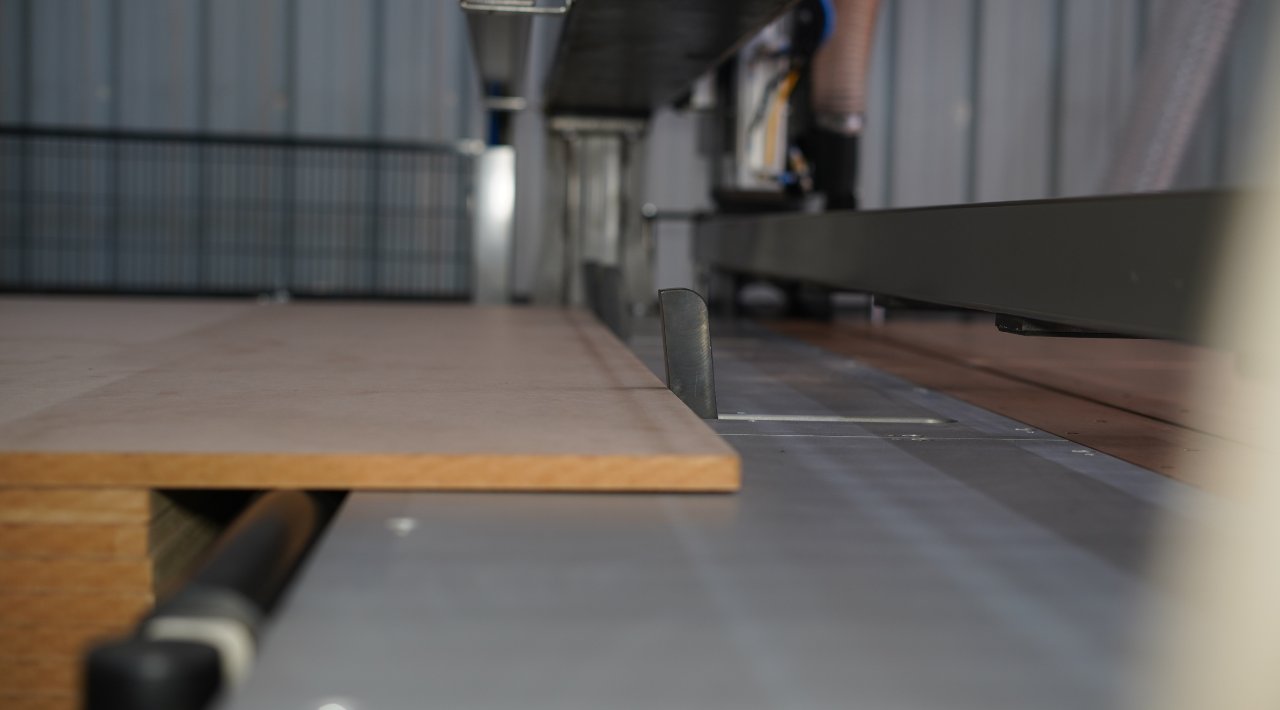

Raw MDF panels are placed on the rear lift with the help of a forklift. These panels are moved to the cutting unit by servo-controlled pushers, where they are sized with millimetric precision thanks to the powerful cutting motor and linear slide systems. After cutting, the resulting pieces are transported to the unloading area via the front lift, making them easy to handle and transport.

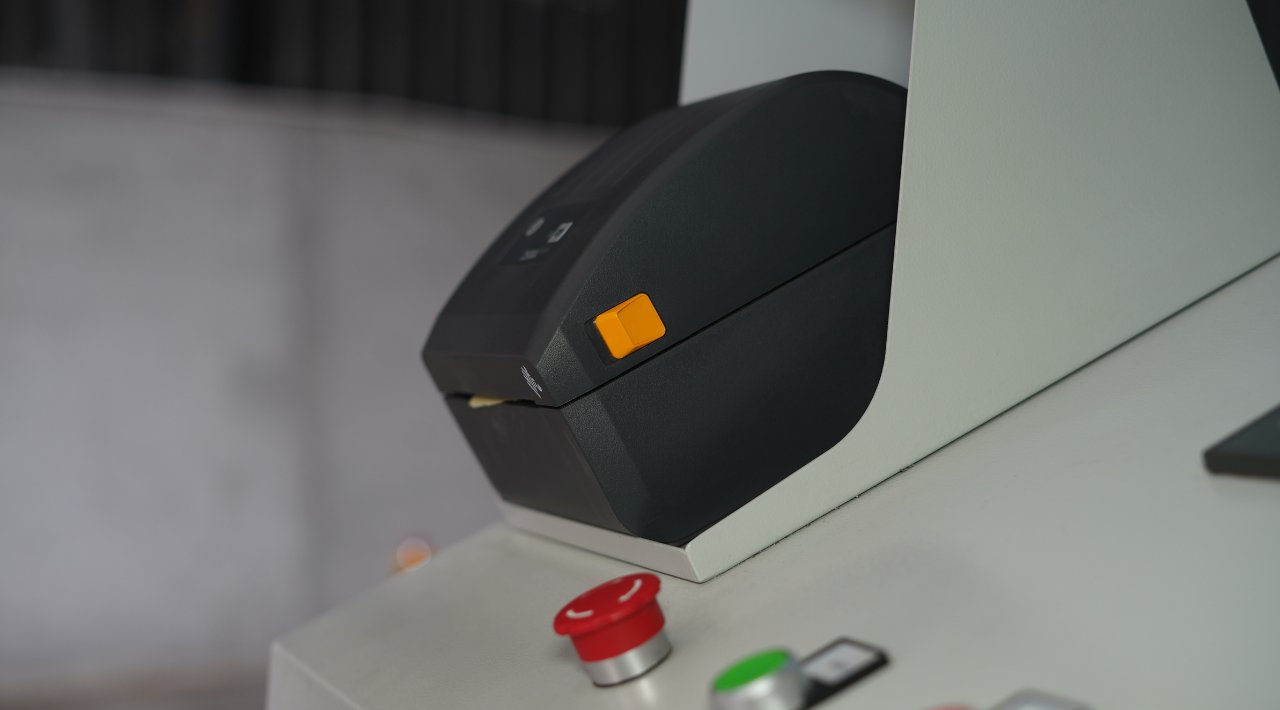

The machine is fully compatible with modern production lines, featuring an optimization algorithm, recipe-saving capability, and barcode support.
Cutting Specifications:
• Maximum Cutting Dimensions: 2900 mm x 2900 mm
• Cutting Height: 72 mm
• Cutting Speed: 200 mm/s
• Cutting Motor: 5.5 kW
• Cutting Servo Power: 0.75 kW
• Rear Pusher Servo Power: 1.5 kW
• Total Motor Power: 12 kW
Lift System:
• Rear Lift: Automatic & Manual / Chain drive / 3 kW brake motor
• Front Lift: Manual / Chain drive / 2 kW brake motor
• Rear Lift Load Capacity: 5 tons (up to 700 mm height)
• Front Lift Load Capacity: 2 tons (up to 600 mm height)

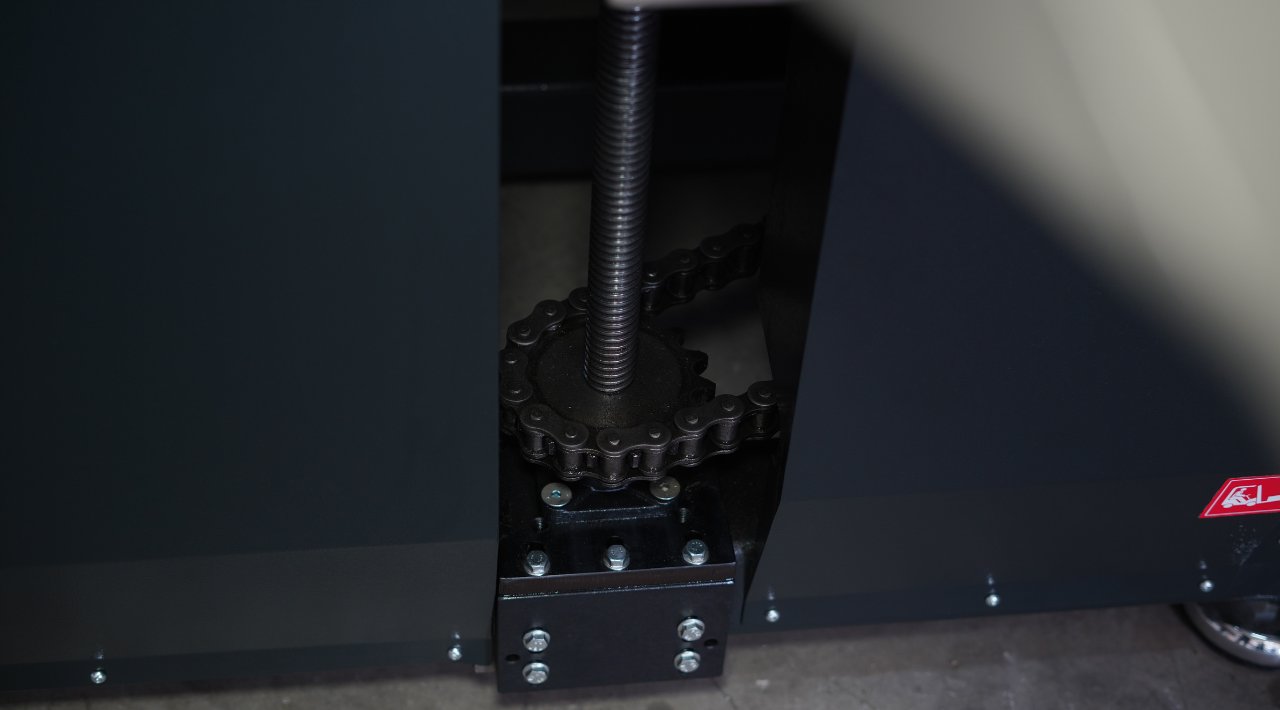

• Both lifts use chain gear and trapezoidal shaft systems.
Technical Features:
• Air Pressure: 6 Bar
• Dust Extraction Capacity: 6000 m³
• Linear Slide Cutting and Pusher System
• Servo-Controlled Rear Pusher
• Ethernet Module
• Ability to resume from where it left off after power outages
• Modular structure suitable for transport
