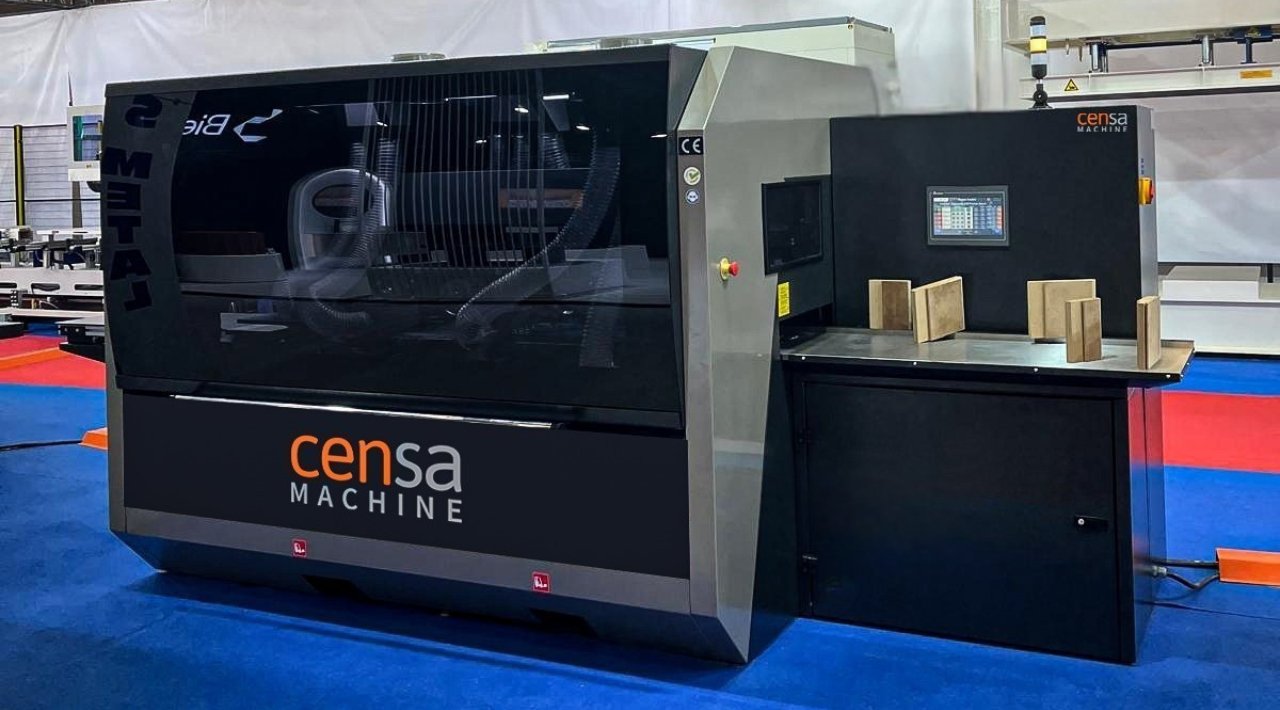

WD 300 PRO – A New Standard in Door Frame Profile Production
Developed with CENSA Makina quality, the WD 300 PRO Door Frame Profile Drawing Machine offers high precision and efficiency in door frame profile production. Specially designed for wooden door production lines, this model is an ideal solution for manufacturers racing against time.
Thanks to its powerful motor structure and optimized pulling system, it processes profiles smoothly, accurately, and rapidly. The automatic feeding system and adjustable pressure mechanism allow it to easily adapt to different materials and dimensions. The WD 300 PRO is designed to deliver maximum performance and superior quality with minimal labor on your production line.
Key Features
• High pulling capacity for fast production
• Durable construction for long-term use
• Easy maintenance with a user-friendly interface
Backed by the reliability of CENSA MAKINA, the WD 300 PRO will be your strong, dependable, and professional partner in door frame profile production.
General Features
• High Pulling Capacity
Optimized traction system for mass production.
• Precision Processing
Ensures smooth surfaces and dimensional consistency on profiles.
• Adjustable Pressure System
Easily adapts to various sizes and materials.
• User-Friendly Design

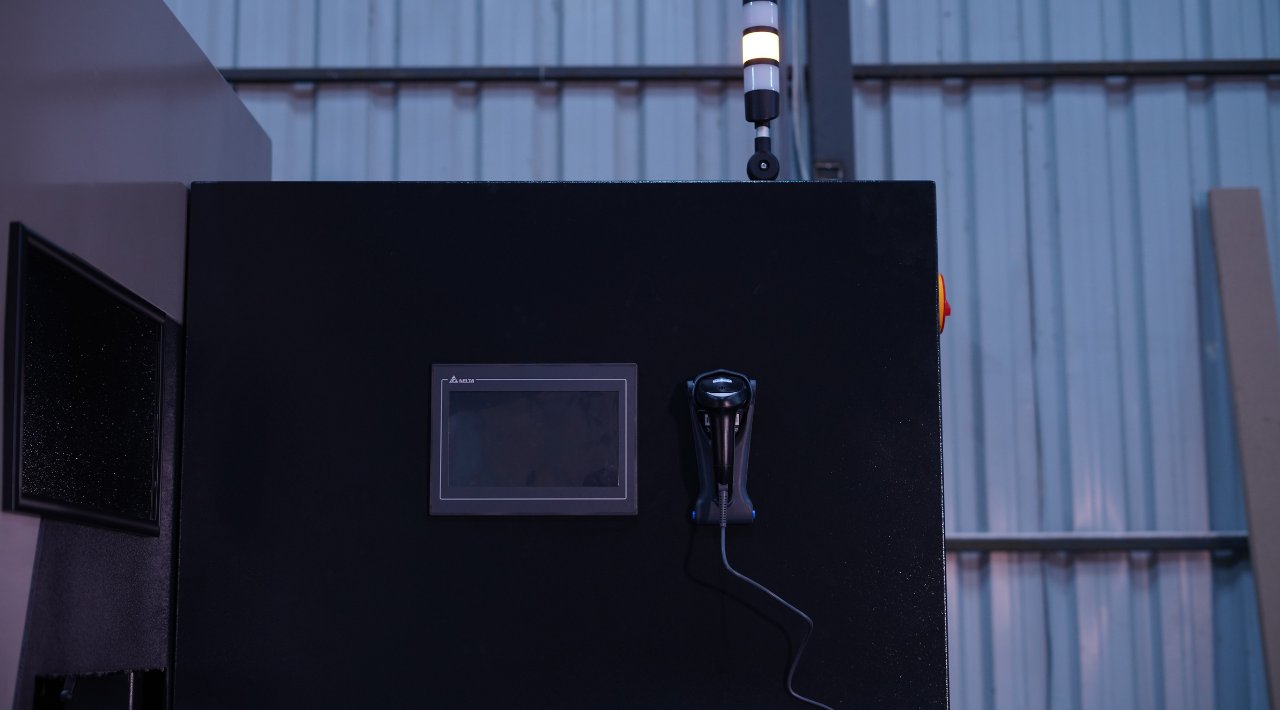

Simple control panel and low maintenance requirements for operator convenience.
• Durable and Compact Build
Long-lasting body construction suitable for tough industrial conditions.
Why Choose WD 300 PRO?
• More production with less labor
• Precision pulling without compromising on quality
• Trouble-free operation under the assurance of CENSA Makina
• A solution that raises the standard in door manufacturing
Technical Specifications
• Optimized configuration for door frame production
• Ability to process both narrow and wide door frames
• Door frame processing range: 80 mm – 400 mm
• Profile height range: 60 mm – 100 mm

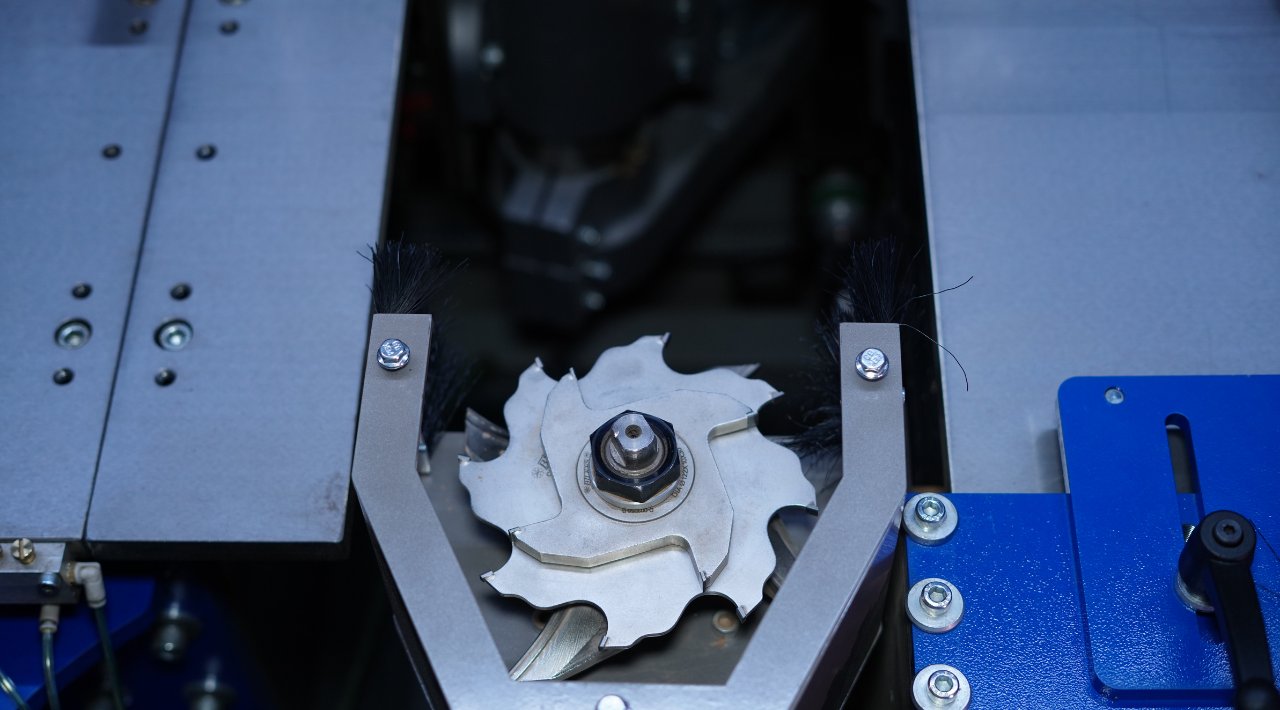

• DIA cutting blades

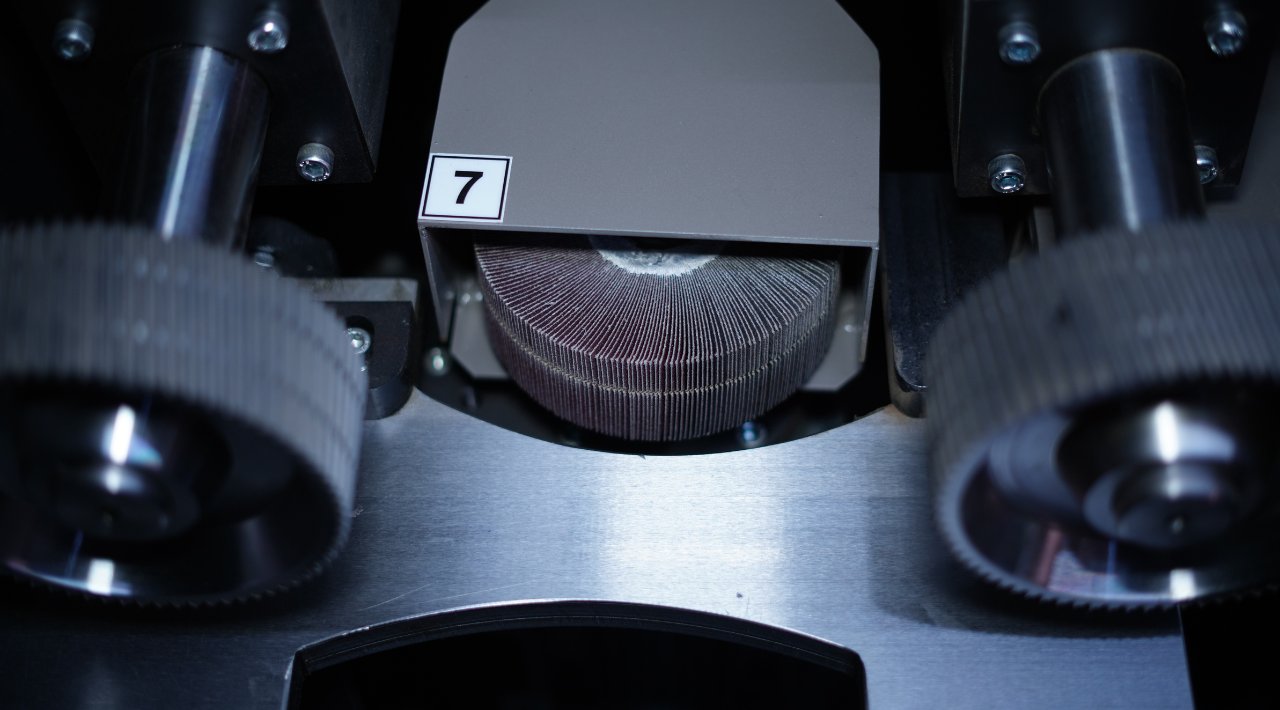

• Sanding feature on processed surfaces
• Automatic selection for groove (lamba) and pommel positions
• Servo system and automatic measuring
• Automatic side pressure units
• Recipe saving feature
• Part counting system
• Sleek and distinctive design
• Sound insulation system
• 4x 5.5 kW motors (6500 rpm)
• 2x 0.40 kW servo motors
• 1x 1.5 kW motor (3000 rpm)
• 3x 1.1 kW motors (3000 rpm)

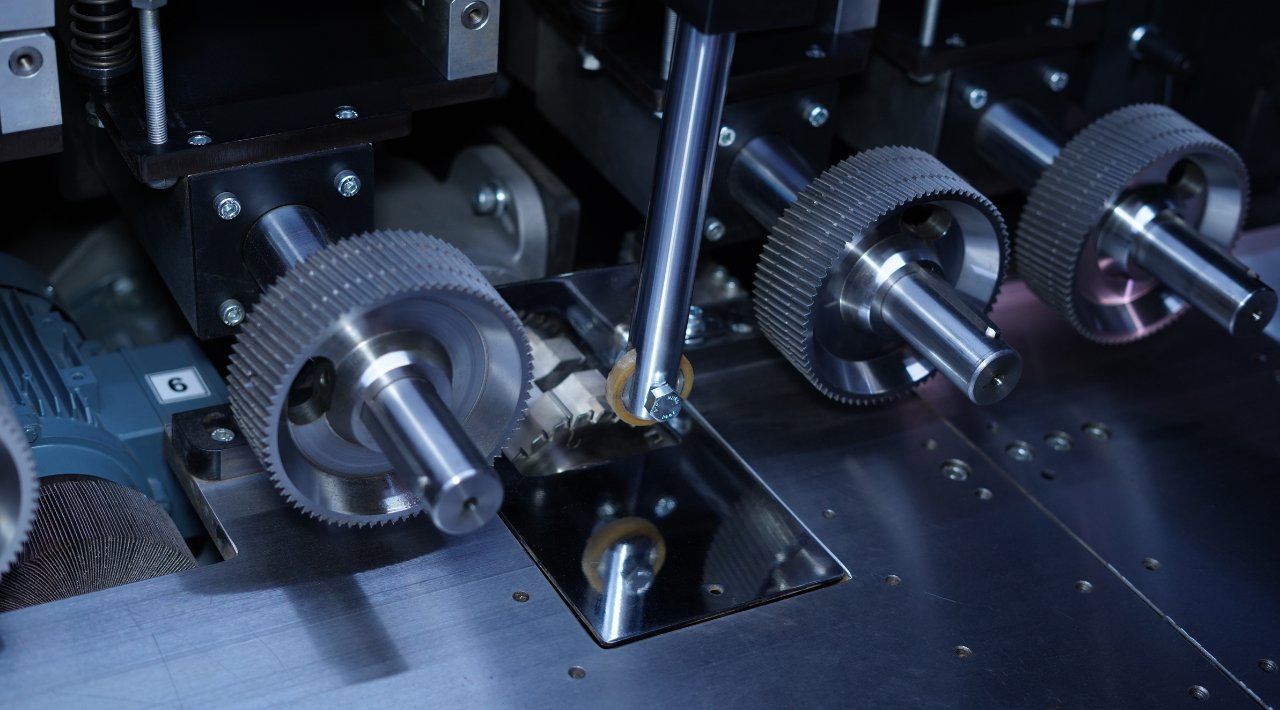

• 7 powerful pullers
• Automatic vertical size adjustment

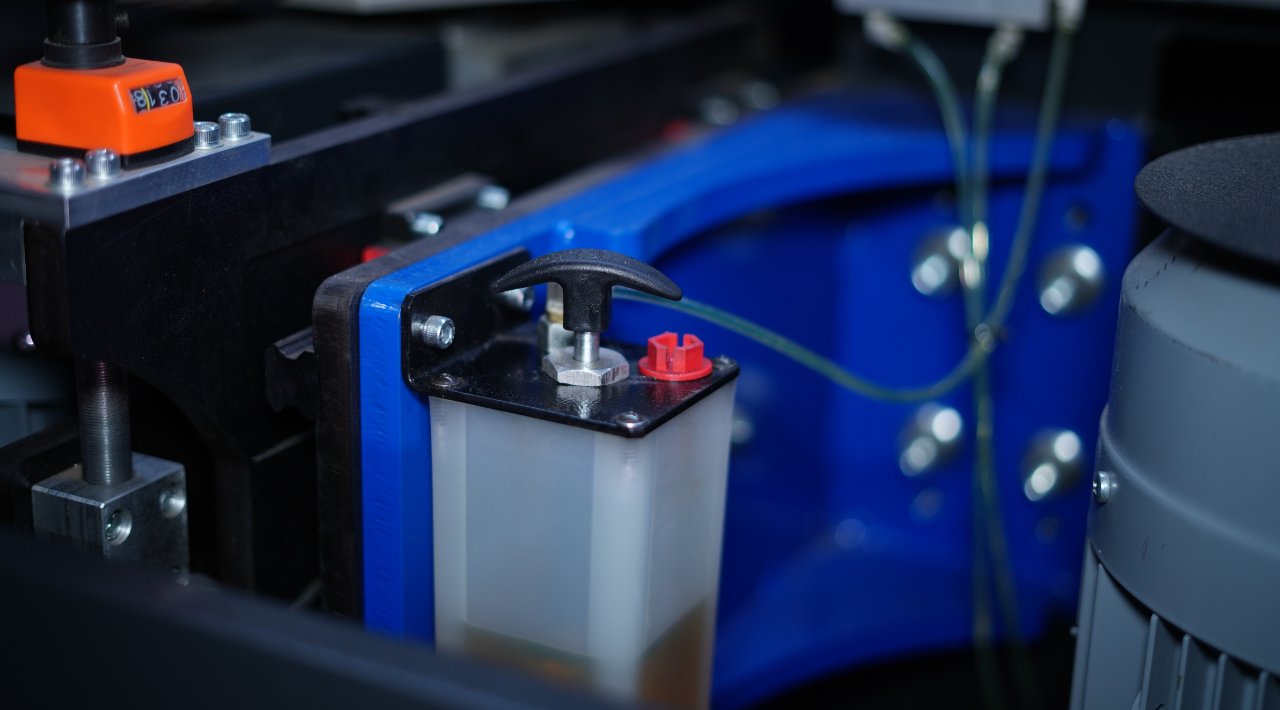

• Central lubrication system
• 380V / 50Hz power supply
• 6 Bar air pressure requirement
